A compact professional monitoring amplifier with balanced inputs, transparent low-noise performance, mono switching and loop-through connectivity.
Description

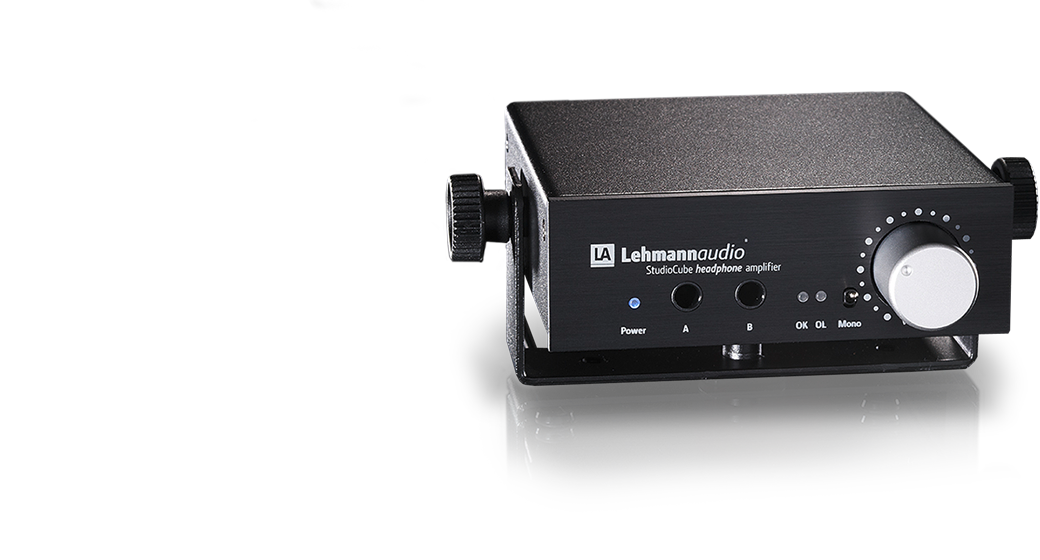

StudioCube
A compact professional monitoring amplifier with balanced inputs, transparent low-noise performance, mono switching and loop-through connectivity.
Key Features
- Balanced XLR/TRS combo inputs
- Two headphone outputs
- Mono monitoring switch
- Balanced THRU output
- Input-level indicator
- Mounting options
Technical Specifications
- Input impedance: 18 kΩ balanced
- Maximum input: +22 dBu
- Gain: 6/12 dB
- Frequency response: 10 Hz–40 kHz
- S/N ratio: >90 dB
- THD: <0.02%
- Output power: 200 mW/33 Ω
- Dimensions: 130 × 132 × 45 mm
- Weight: 0.88 kg
Available through MUVON Audio Trading LLC in Dubai for authorised dealers and distribution partners across the Middle East and GCC.
Additional information
| Technical specifications | Input impedance: 18 kΩ balanced, Maximum input: +22 dBu, Gain: 6/12 dB, Frequency response: 10 Hz–40 kHz, S/N ratio: >90 dB, THD: <0.02%, Output power: 200 mW/33 Ω, Dimensions: 130 × 132 × 45 mm, Weight: 0.88 kg |
|---|
