The classic Lehmannaudio MM/MC phono stage, combining flexible cartridge matching with low-noise circuitry and precise passive RIAA equalisation.
Description

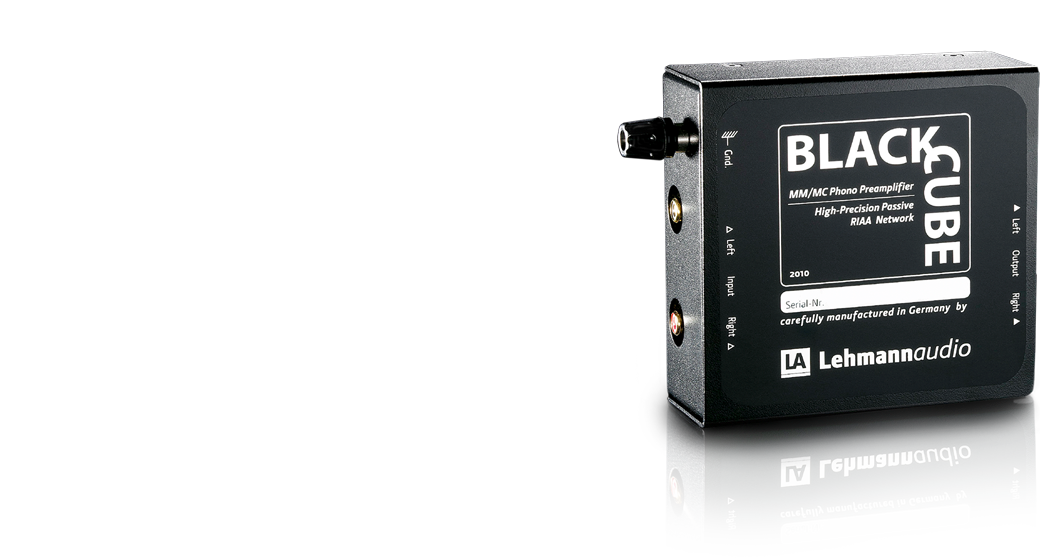

Black Cube
The classic Lehmannaudio MM/MC phono stage, combining flexible cartridge matching with low-noise circuitry and precise passive RIAA equalisation.
Key Features
- MM and MC compatible
- Four gain settings
- Configurable impedance
- Custom and hardwire load slots
- External power supply
- Compact aluminium audio section
Technical Specifications
- Gain: 36/46/56/66 dB
- Input impedance: 47 kΩ/1 kΩ/100 Ω plus custom load
- Channel separation: >85 dB
- Output impedance: 47 Ω
- Input capacitance: 100 pF
- Bass filter: 50 Hz, 6 dB/oct.
- Audio section: 113 × 108 × 45 mm
- Audio weight: 0.4 kg
Available through MUVON Audio Trading LLC in Dubai for authorised dealers and distribution partners across the Middle East and GCC.
Additional information
| Technical specifications | Gain: 36/46/56/66 dB, Input impedance: 47 kΩ/1 kΩ/100 Ω plus custom load, Channel separation: >85 dB, Output impedance: 47 Ω, Input capacitance: 100 pF, Bass filter: 50 Hz, 6 dB/oct., Audio section: 113 × 108 × 45 mm, Audio weight: 0.4 kg |
|---|
